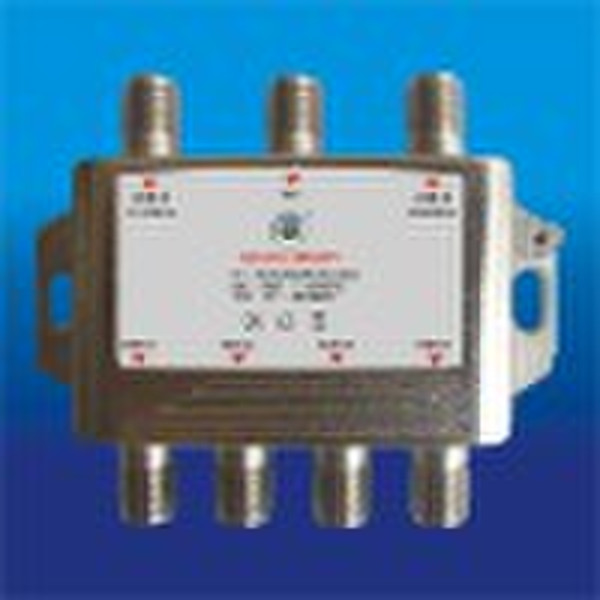

Multiswitch MS 3-in-4-out Y

Multiswitch MS 3-in-4-out Y ZINNC DIE CAST HOUSING 3×4,13/18V Multiswitch:Model MS34Y:Super Compact Housing Multiswitch MS 3-in-4-out Y FEATURES 1. 2satellite IF and 1 terrestrial TVinputsto selected by 13/18VDC to 4,6 or 8 satellite receivers. 2. High switching isolation. 3. Suitable for the requirement of Australia standard. SPECIFICATION 1. Frequency Range:SAT 950-2150MHz/Terr 47-862MHz 3. Insertion loss:SAT 0dB/Terr 12dB 4. Switching isolation:25dB 5. Input Isolation:30dB 6. Return loss:10dB 7. DC Current Consumption:80mA 8. Max.Current To LNBS:500mA 9. Dimension for goods: 87x71x16mm 10.Packing: white box , 150pcs/ctn 111.5g/pc 9.5x8x2cm
