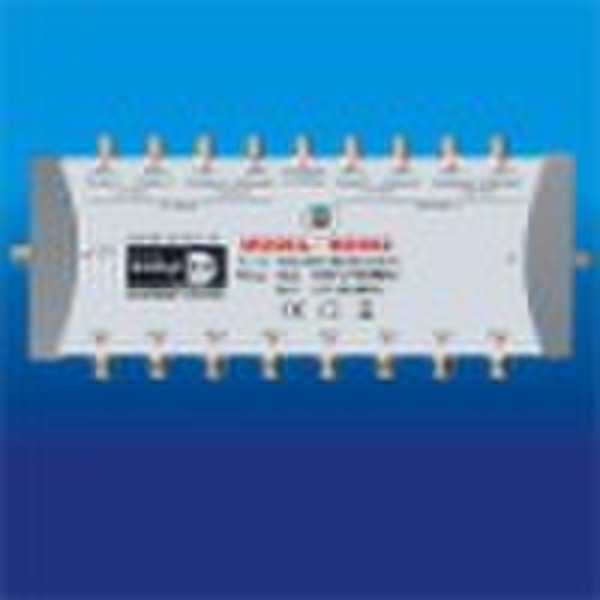

Multiswitch MS 9-in-8-out S

SHEET METAL HOUSING 9×8,13/18V,22kHz & DiSEqC 2.0 Multiswitches: Model MS98X:Built-in linear power supply, Model MS98K:Built-in switching power supply, Model MS98S:With external power jack Multiswitch MS 9-in-8-out S FEATURES 1. Multiswitch 8 SAT & 1 Terr. TV inputs to8 outputs for satellite receivers . 2. Built-in amplification circuit to compensate cable loss . 3. 8 SAT IF selected by 13/18VDC & 22 kHz and DiSEqC 2.0 commands. 4. Matriax routes between any input to any output. 5. Suitable for residential multiple LNBs reception. 6. Sheet metal housing with plastic holder. 7. Popular market: European , Middle east 8. Reasonable Input/output port design , easy to install . 9. Plastic Holder: Grey SPECIFICATION 1.Frequency Range:SAT 950-2150MHz,Terr 47-862MHz 2.Insertion Loss:SAT 0dB,Terr 2dB 3.Switching Isolation:25dB 4.Isolation:30dB 5.Rejection:28dB 6.Return Loss:8dB 7.SAT Output Level (dBuV):100@35dBIMA3,EN50083-3 8.Terr.Output Level (dBuV):85@60dBIMA3,EN50083-5 9.Built-inPower Supply:100-240VAC 50/60Hz 10.Dimension:250×120×43mm
